USB hub

Installing the USB hub for camera connection

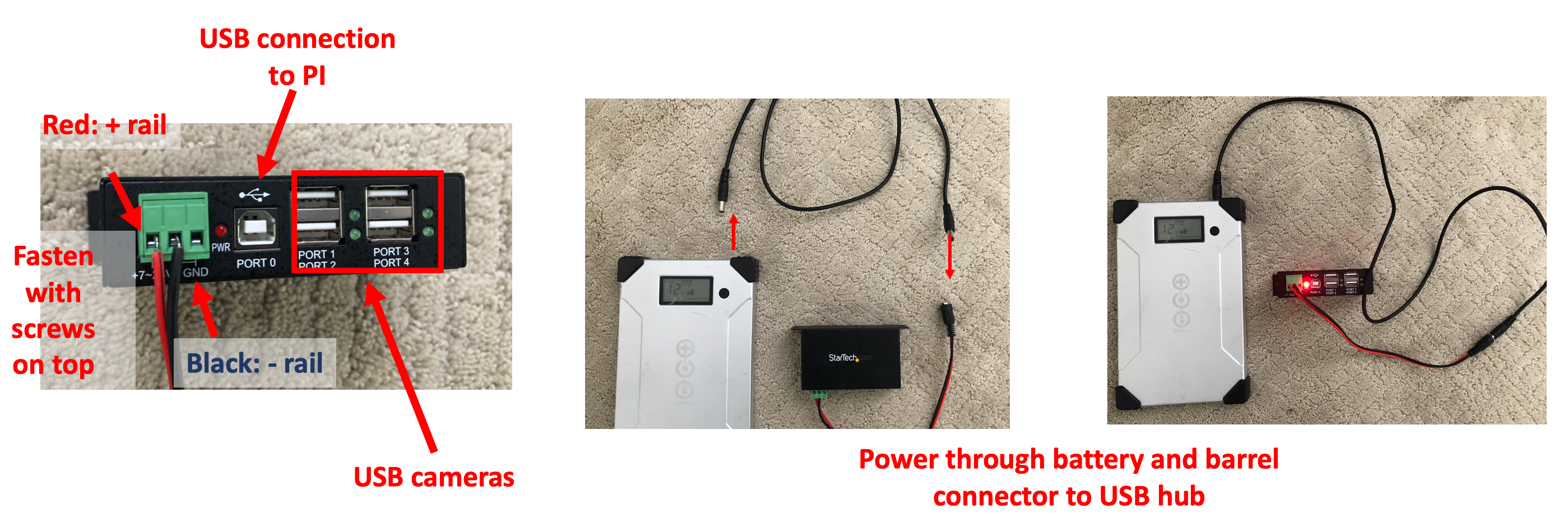

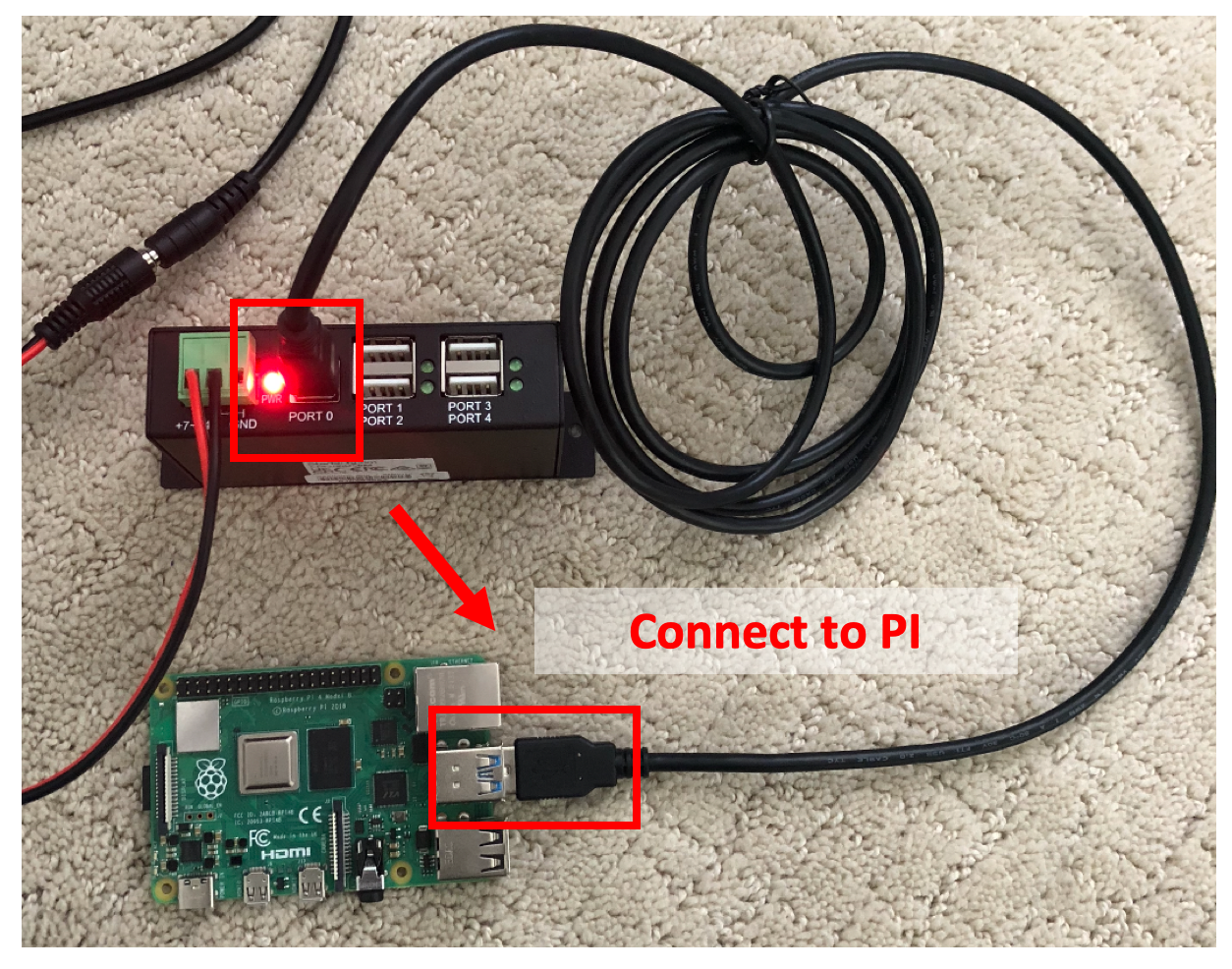

Connect the USB-hub power connector (2.1 mm to open leads) to the USB-hub as shown below using a small flathead screwdriver. Connect the red (+ rail) wire to the positive terminal and the black (- rail) to the negative terminal. Then, the 2.1 mm end (female barrel connector) will connect to the Voltaic battery via a male-to-male barrel connector as pictured. Plug this into the rightmost (when looking at the front of the battery) plug, a power output plug.
